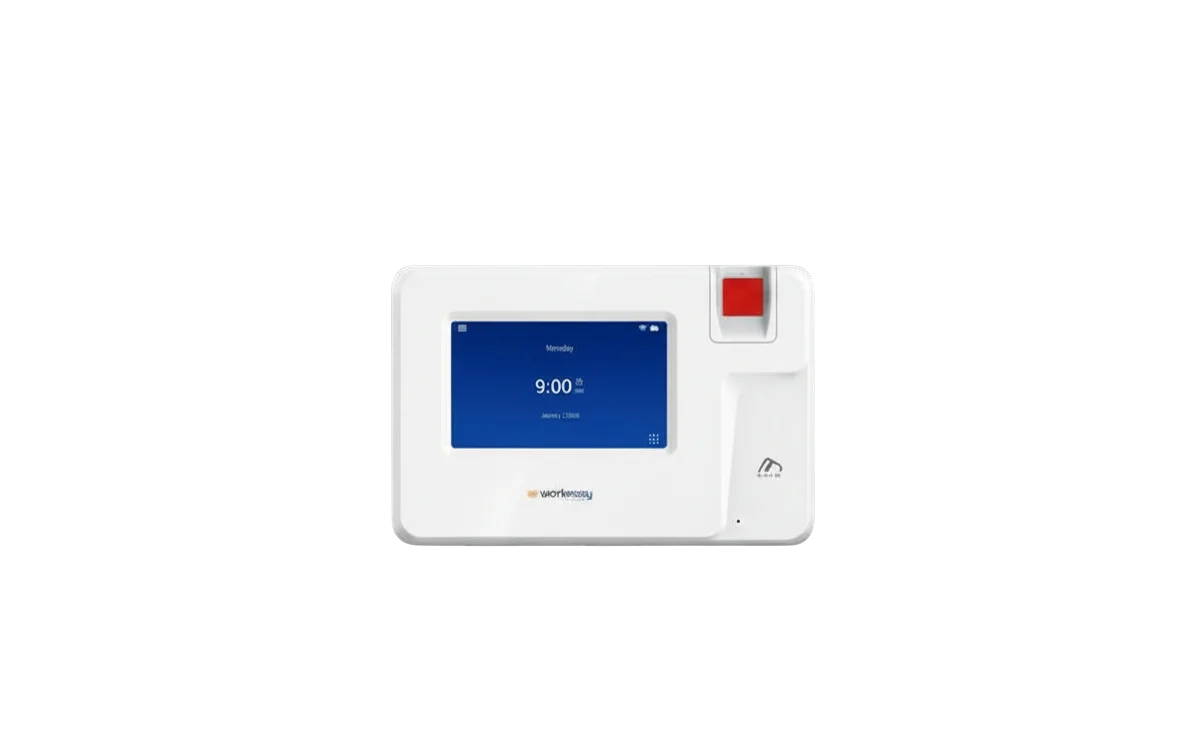

Xenio® 200

The Employee Timeclock Re-Invented

Designed for office environments, the ideal small business time clock.

OVERVIEW

With over 10 years of technical know how and customer feedback, EasyClocking’s Smart Xenio Time Clock is the first time clock to actually live up to it’s moniker of Genius. Designed for small businesses, with clean environments, and packed full of features necessary for businesses operating in the world today. With the ability to effectively manage employee time and attendance, comply to varying labor laws, and provide an overall increase in office productivity, the question to ask is can your business afford not to have a Xenio smart time and attendance system in place?

THE EMPLOYEE TIME CLOCK, RE-IMAGINED.

Restrict Early In/Late Out
Control costly overtime hours by restricting when employees can clock in or out.

Employee Self-Service
Empower your employees with the ability to check their jobs, punches, and schedules right at the clock.

Scheduling
Allows your employees to view their work schedules.

Messaging
Message prompts allow management to easily communicate with staff when clocking in or out.

EasyClocking Xenio 200 Fingerprint Time Clock Punch Restriction Feature

Custom Questions
Collect additional employee data at time of clocking, like entering tips, or asking a specific question.

Job Costing
Effectively track labor costs for a specific client, project, or job.

Time Cards
Allows employees to view their time logs.

FEATURES

WORLD’S #1 FINGERPRINT TECHNOLOGY

The extra large fingerprint sensor captures more data points and makes it easier to verify users. And coupled with the world’s #1 algorithm as per evaluation by U.S. government NIST PFT II, makes the Xenio 200 the best in class.

REAL TIME COMMUNICATION

Get up to the minute real time view of your workforce. Xenio time clocks push data to the EasyClocking software as it happens to give you a real time view of your employees time & attendance status.

DUAL FREQUENCY CARD READER

Xenio adds dynamic dual frequency (125Khz & 13.56 Mhz) support of multiple credential technologies including iCLASS Seos, iClass SE, Standard iCLASS, HID Prox, Standard Prox EM, NFC, Felica MiFARE Classic and DESfire EV1.

FLEXIBLE APIS

Our APIs provides methods to manage, control and monitor Xenio devices. Through this Intelligent Service, a partner’s application can connect with one or thousands of Xenio devices simultaneously, extending the power to add intelligent next generation biometric and RFID identification devices to their systems.

POWER OVER ETHERNET

Using the existing Local Area Network (LAN) for both power and data eliminates the need for any additional power supply or electrical wiring.

Dimensions

Height:5 inches
Width:7.5 inches
Deep:2.75 inches

Smart Card Technology

Standard Reader: 125Khz EM Prox
Optional Dual Frequency Reader:
Frequencies: 125kHz and 13.56 MHz
Supported credential types: HID Prox, EM Prox iClass
SE/SR/Seos/Elite Mifare Classic,1K, 4K, Desfire EV1
Certified by US Government FIPS 210 PIV II

Processor & Memory

QUAD Core, ARM A9 Cortex 1.6 Ghz
4GB Flash Memory, 1GB RAM

Biometrics

Fingerprint Technology: Optical Imaging
Image resolution: 500DPI
Scanning area: 17.4 mm x 13mm
Identification Methods: 1:1 or 1:N
User Capacity: 1000 / 10,000 Optional
Fingerprint capacity: 10,000 / (up to 100,000 optional)
Standards: ANSI-378, ISO1974 Certified with NIST Minex-III, PIV, FBI WSQ and most industry biometric standards and interoperability spectral imaging

Communication Interface

PoE (Power Over Ethernet)
TCP/IP
Wi-Fi
USB Download
1 Programmable Universal Relay
RS485(COM)
Wiegand Output
2 TTL Input
1 TTL Output

Display

4.3 Inches
Capacitive 5 point touch
Color LCD

Door Access Control

1 Form C Relay can connect to manage access to electronic locks.

Authentication Methods

Fingerprint, Smart/Prox Card, Pin Number Optional: Barcode Reader, Magnetic Stripe

Energy

DC 12 Volts
Current (Operational): 1.5A
